| Model Items | TMD-103 |
| Working Freq. | 60KHz, sine wave |
| Measurement range for conductivity | 0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m,or resistivity 0.015388 to3.33333Ω•mm²/m |
| Resolving power | 0.01%IACS(when <51%IACS); 0.1%IACS(51%IACS to 112%IACS ) |
| Measuring precision | ±0.5% reading |
| Lift-off effect | Probe compensation 0.5mm |
| Temp. measurement | 0℃ to +50℃(precision 0.5℃) |
| Function of auto compensation | Measured result of conductivity, adjusting to value at temp. 20℃ automatically; Manual input temperature compensation mode |
| Probes | The probe of diameter ¢14mm, working freq. 60KHz.The probe is made of imported material, wear-resistant and high temperature resistant, and can be replaced intelligently . |
| Normal working environment | Temp. 0℃ to +50℃; relative humidity, 0 to 95% |
| Display | Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously. |
| Power supply | Equipped with a lithium ion battery of 2200mA/h |
| Reading memory | Storage for16000 groups of measured data files. |
| Communication with PC machine | RS 232 interface |
| Weight of host machine | 0.5kg (including batteries) |
| Dimension of host machine | 220mmx95mmx55mm |
| Shell of instrument | Engineering plastic, high impact-resistance, waterproof shell for this instrument |

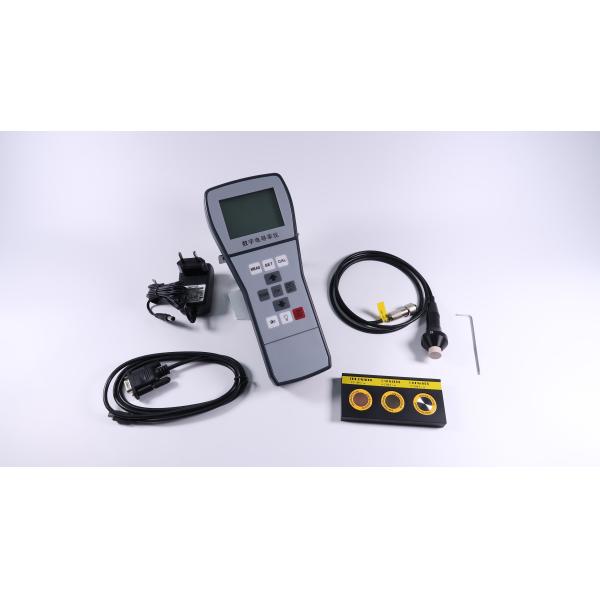

| Package and protection | High impact-resistance, waterproof, portable box made of aluminium alloy; inside of it there are instrument, probes, communication cable, operation manual, conductivity blocks, recharger, instrument stand, U- disk (or optical disk). |
| Accessories | 3 pieces of standard conductivity blocks,. You can purchase more blocks if you wish. |
